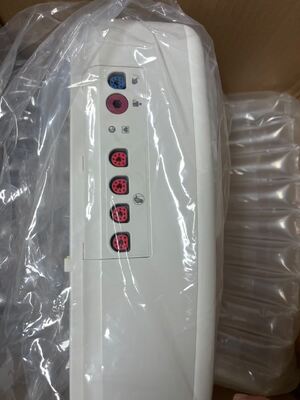

Philip FM20 FM30 FETAL MONITOR NIBP SPO2 SOFTWARE UPGRAD
उत्पाद विवरण:
| उत्पत्ति के प्लेस: | मूल |
| ब्रांड नाम: | PHILIP |
| मॉडल संख्या: | एफएम20 एफएम30 |
भुगतान & नौवहन नियमों:
| न्यूनतम आदेश मात्रा: | 1 |
|---|---|
| मूल्य: | Negotiation, pls contact me |
| पैकेजिंग विवरण: | कार्टन का डिब्बा |
| प्रसव के समय: | भुगतान की पुष्टि होने के 1-2 कार्य दिवसों के भीतर |
| भुगतान शर्तें: | टी/टी, वेस्टर्न यूनियन |
| आपूर्ति की क्षमता: | 10 |
|
विस्तार जानकारी |
|||
| नमूना: | एफएम20 एफएम30 | गारंटी: | 6 महीने |
|---|---|---|---|
| शेयरों: | उपलब्ध | स्थिति: | अच्छा |
| प्रमुखता देना: | Philip FM20 fetal monitor NIBP,FM30 fetal monitor SpO2,fetal monitor software upgrade |
||
उत्पाद विवरण
Philip FM20 FM30 FETAL MONITOR NIBP SPO2 SOFTWARE UPGRAD

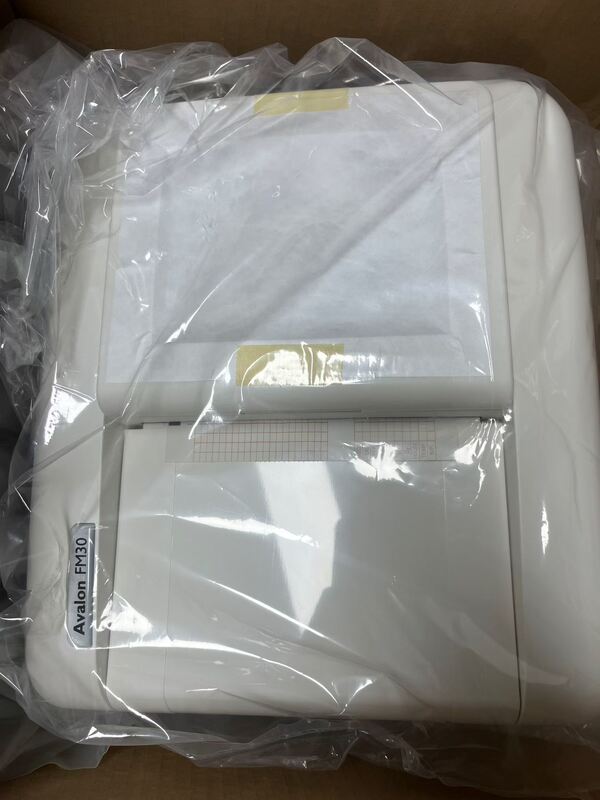

Philip Avalon FM20 / FM30 Fetal & Maternal Monitor
(English Technical Specifications)
1. General Information
| Item | FM20 (M2702A) | FM30 (M2703A) |
|---|---|---|
| Type | External fetal/maternal monitor | External + internal fetal/maternal monitor |
| Application | Antenatal / intrapartum, basic monitoring | Antenatal / intrapartum, complex high-risk cases |
| Display | 6.5” color TFT touchscreen | 6.5” color TFT touchscreen |
| Dimensions (W×H×D) | 286 × 133 × 335 mm (11.3 × 5.2 × 13.2 in) | Same as FM20 |
| Weight | 5.1 kg (11.2 lbs) (no battery) | Same as FM20 |
| Battery (optional) | Li-ion, up to 4 hours operation | Same as FM20 |
| Warm-up Time | <30 seconds | Same as FM20 |
2. Fetal Monitoring Parameters
External (Both FM20 & FM30)
- FHR (Ultrasound, US)
- Range: 30–240 bpm
- Probe: M2736A (1 MHz Doppler)
- Multiple gestation: Twins (standard), triplets (optional)
- Uterine Activity (TOCO)
- Probe: M2734B (TOCO MP) / M2735A (Smart TOCO+)
- Range: 0–100 mmHg
- Fetal Movement (FM)
- Auto-detected via US; manual marking available
Internal (FM30 Only)
- DECG (Direct Fetal ECG)
- Invasive FHR via fetal scalp electrode
- Range: 30–240 bpm; diagnostic ECG waveform
- IUP (Intrauterine Pressure)
- Invasive uterine pressure monitoring (0–300 mmHg)
3. Maternal Monitoring Parameters (Both Models)
- MECG / Maternal Pulse
- 3-lead ECG; heart rate: 30–240 bpm
- Smart Pulse + Cross Channel Verification (CCV) (standard): eliminates maternal-fetal heart rate confusion
- Optional
- NIBP (non-invasive blood pressure): 60–240 mmHg (systolic)
- SpO₂: 0–100% (with finger sensor)
- Temperature: 32–42 °C (tympanic probe)
4. Recording & Data Storage
- Integral Recorder
- 50 mm thermal printer (standard); 75 mm optional
- Speed: 25 / 50 mm/s; resolution: 1%
- Records: FHR, TOCO, MECG, events, annotations
- Data Buffer
- Minimum 7 hours continuous FHR/TOCO waveform storage
- Connectivity
- Serial (RS232), LAN (optional) for OB TraceVue™ connection
- Output: Waveforms, numeric data, alarms
5. Environmental & Safety
- Operating Temperature
- 0–45 °C (no battery); 0–40 °C (with battery)
- Storage Temperature: −20–60 °C
- Humidity: 10%–95% (non-condensing)
- Safety Classification
- Type CF (defibrillation-proof), Class II (double insulation)
- Probe IP Rating: M2734B/M2735A/M2736A: IP68 (1 m, 5 hours)
6. Key Part Numbers
- FM20: M2702A
- FM30: M2703A
- US Probe: M2736A
- TOCO Probe: M2734B (MP) / M2735A (Smart+)
- MECG Cable: M2738A
7. Main Differences
- FM20: External monitoring only; for low/medium-risk pregnancies
- FM30: Adds internal DECG + IUP; for high-risk / complicated deliveries
